Diagnoza Auto Techstar® Vgate iCar Pro, Bluetooth 4.0, Android si iOS, MultiMarca, OBD 2

Descriere

Vgate iCar Pro Specificatii:

Supply Voltage: 11.5V-15V

Supply Current: <200Ma

Standby Current: <30Ma (TONWON Pro = <3Ma)

Operating temperature: -40 ℃ - 85 ℃

Operating Humidity: 5% - 95% RH Non-Dewfall

Vgate iCar Pro OBD II adaptor Suporta toate protocoalele OBD-II:

SAE J1850 PWM (41.6 Kbaud)

SAE J1850 VPW (10.4 Kbaud)

ISO9141-2 (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

SAE J1939 CAN (29bit ID, 250 * Kbaud)

USER1 CAN (11 * bit ID, 125 * Kbaud)

USER2 CAN (11 * bit ID, 50 * kbaud)

* Default Settings (User Adjustable)

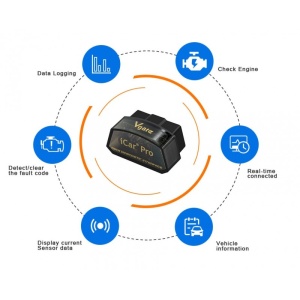

Vgate iCar Pro Functii:

Diagnostica si descrie fiecare eroare aparuta in bordul autovehiculului(peste 3000 de coduri generice in baza de date).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status
